Photolithography Lab

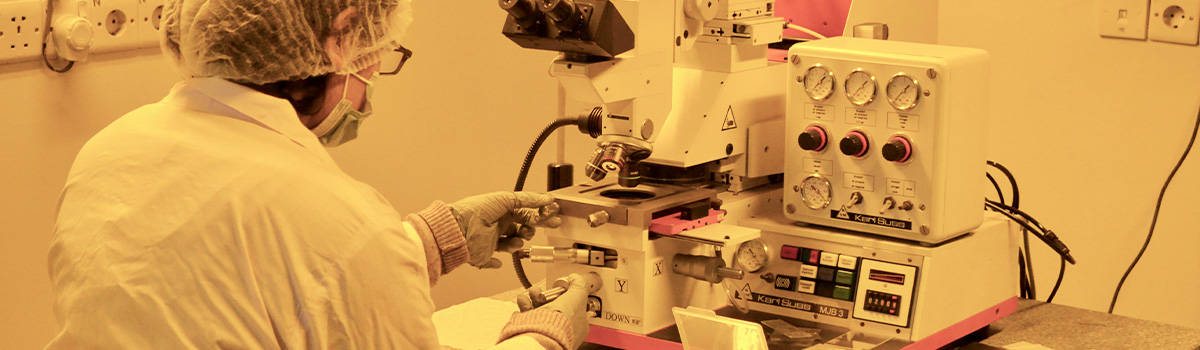

Karl Suss MJB 3 Mask Aligner

The MJB 3 is designed for high resolution photolithography in a laboratory or pilot plant production. It offers flexibility in handling of irregularly shaped substrates of differing thickness as well as standard sized substrates up to 3” diameter.

Capabilities

Mask size: 2.5 inch 3 inch and 4 inch
Substrate sizes: pieces to 75 mm
Range of alignment: X, Y ± 10mm and Theta ± 10°
Substrate movement is performed with high precision micrometers for X, Y, and Theta axis resolution of 0.1 μm
Alignment accuracy: 0.1μm for top side alignment (with 20x objectives)
Exposure modes: soft contact, hard contact, and vacuum contact
Print resolution
Soft contact: 1.0 – 2.0 μm
Hard contact: 0.8 – 1.5 μm
Vacuum contact: 0.6 μm
350 mercury arc lap with a UV filters for 365 nm and 405 nm wavelength
